Dual Wave 5.2L 19KW 0.5MPa Lead Free Soldering Machine

  • 1
  • 2

Brand Name : JAGUAR

Model Number : N300

Certification : CE; ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 1set

Price : To be negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50 sets per month

Delivery Time : 10-15 Working Days

Packaging Details : Stand Export Package by Vacuum and Plywood Case

Name : Wave Solder

Function : THT Soldering

Usage : Plug-in PCBA soldering

Application : DIP Line

Flux Sprayer : Stepper motor driven

Flux Capacity : 5.2L

No. of Preheater : 3

Length of Preheater : 1450mm

Preheater Temperature Control Mode : PID closed loop + SSR

Solder Pot Capacity : 280kgs

Wave Mode : Turbulance and Mirror Wave

Machine Dimension : 3600*1250*1650mm

Contact Now

Panasonic conveyor motor, inverter speed control
Automatic finger cleaning system
Fan assisted cooling

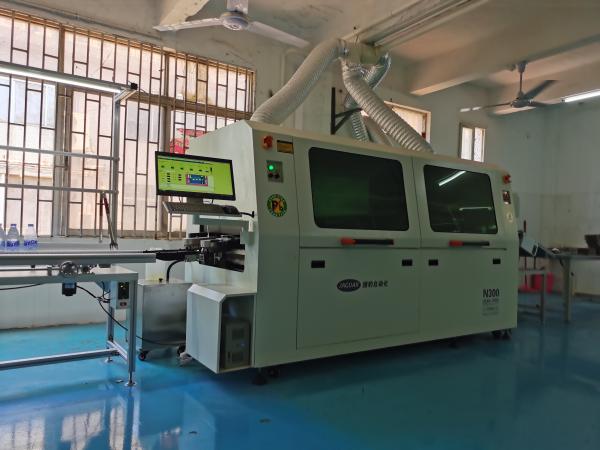

JAGUAR 3 Preheating Zone Lead-free Hot Air Wave Solder N300

  • To meet most of lead-free applications, environment friendly
  • To ensure soldering quality, meantime user friendly
  • To improve productivity, meantime save energy
  • To keep balance of smart and stable
  • To achieve the best user experience

​
Specification:

Model No.JAGUAR N300
Control MethodButton+PLC(Optional: Touch Screen or PC)
Number of Pre-heaters3
Pre-heater Passage1450mm
Preheating TimeAbout 10-15mins for Setting 150ºC
Preheat StyleHot Air
Preheat Consumption220V 6KW
Solder ApplicationLead-free / Sn-Pb
Solder Pot Capacity280kgs
Solder Pot Temperature300ºC
Solder Pot Consumption380V 9KW
Solder Temp. Control MethodPID&SSR
Wave Motor Power250Wx2pcs 220V
Solder MeltingAbout 120mins for Setting 250ºC
PCB Width50-300mm
Conveyor Speed0-1800mm/min
Conveyor DirectionL→R (R→L optional)
Solder Angel4-7 º
Flux Pressure/Capacity3-5 Bar
Flux Capacity5.2L
Weight1200KG
Total/Steady Sonsumption19KW/5-7KW
Air Supply0.5MPa
Body Size2800(L)*1250(W)*1650(H)
Outside Dimension3600(L)*1250(W)*1650(H)




Features:

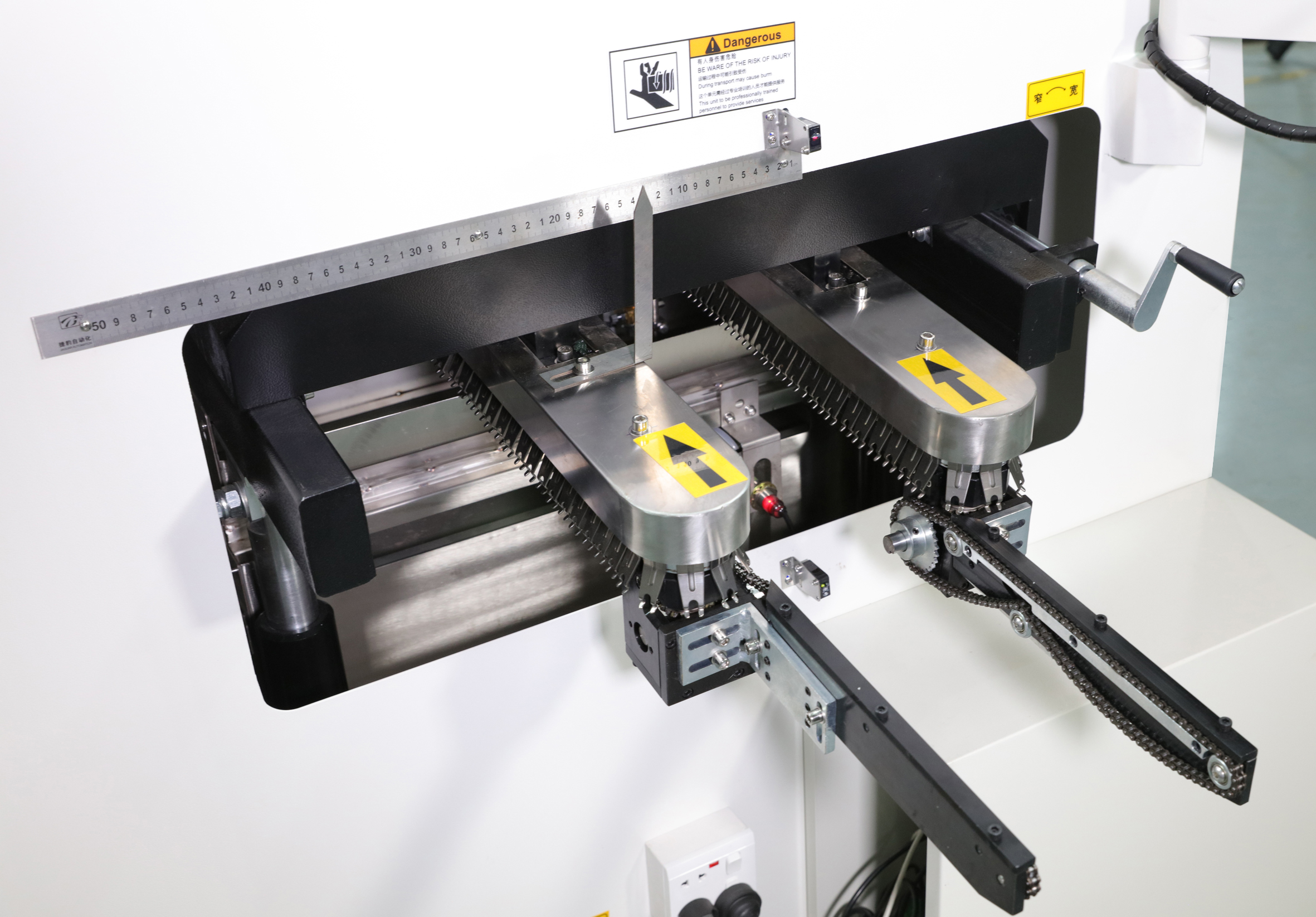

Sturdy titanium fingers
Standard infeed chain conveyor
Intelligent PCB recognition
Automatic flux spray
Automatic wave soldering
Dual Wave 5.2L 19KW 0.5MPa Lead Free Soldering Machine

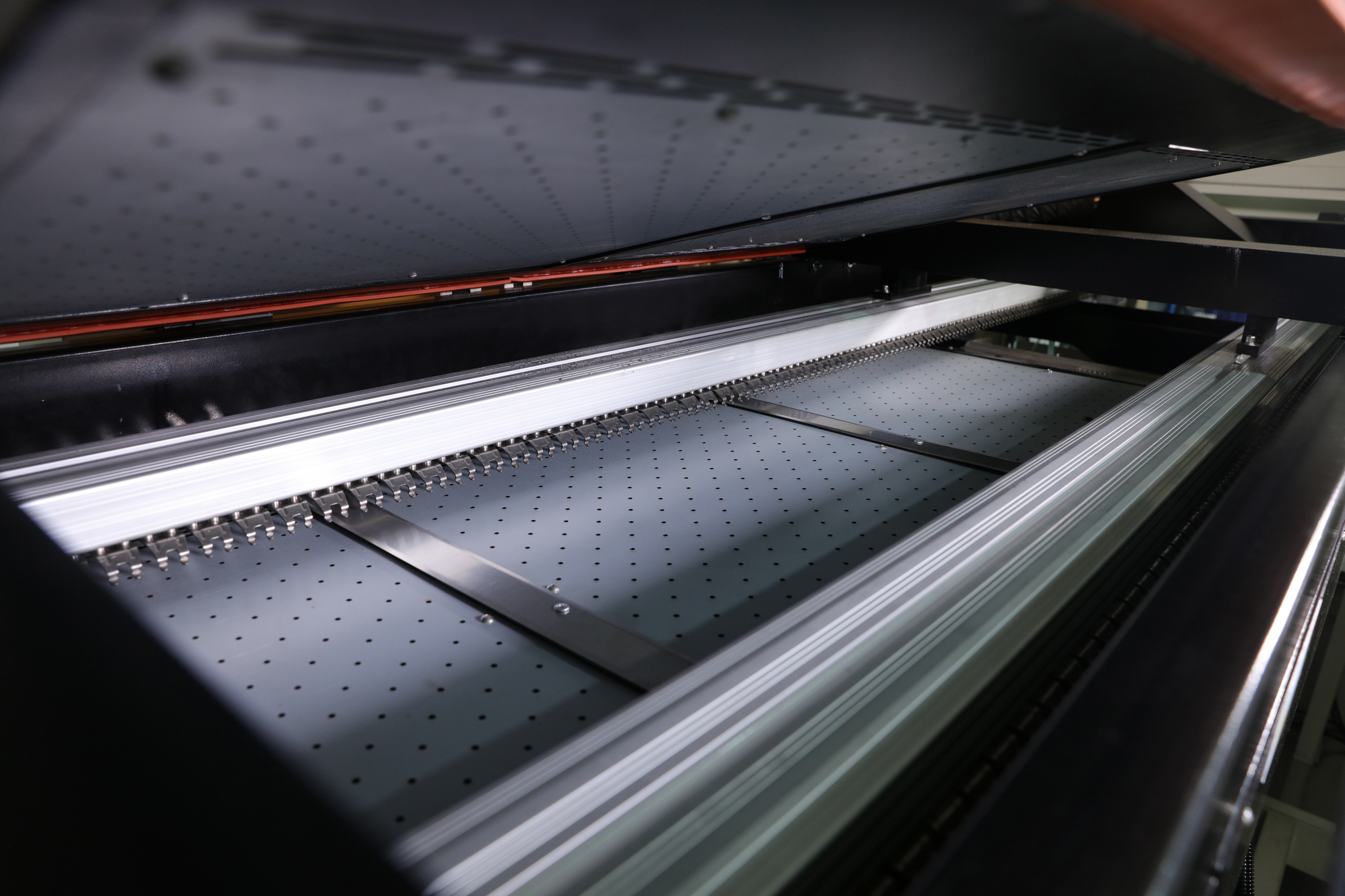

3 independent controlled hot air preheater
Bottom heating temperature up to 150℃
Total preheaing passage:1450mm
Dual Wave 5.2L 19KW 0.5MPa Lead Free Soldering Machine
Standard 316 S/S solder pot
Dual wave mode, turbulence wave and laminar wave
Each wave independent motor driven, inverter speed control
Solder pot timer function, save tin melting time

Dual Wave 5.2L 19KW 0.5MPa Lead Free Soldering Machine

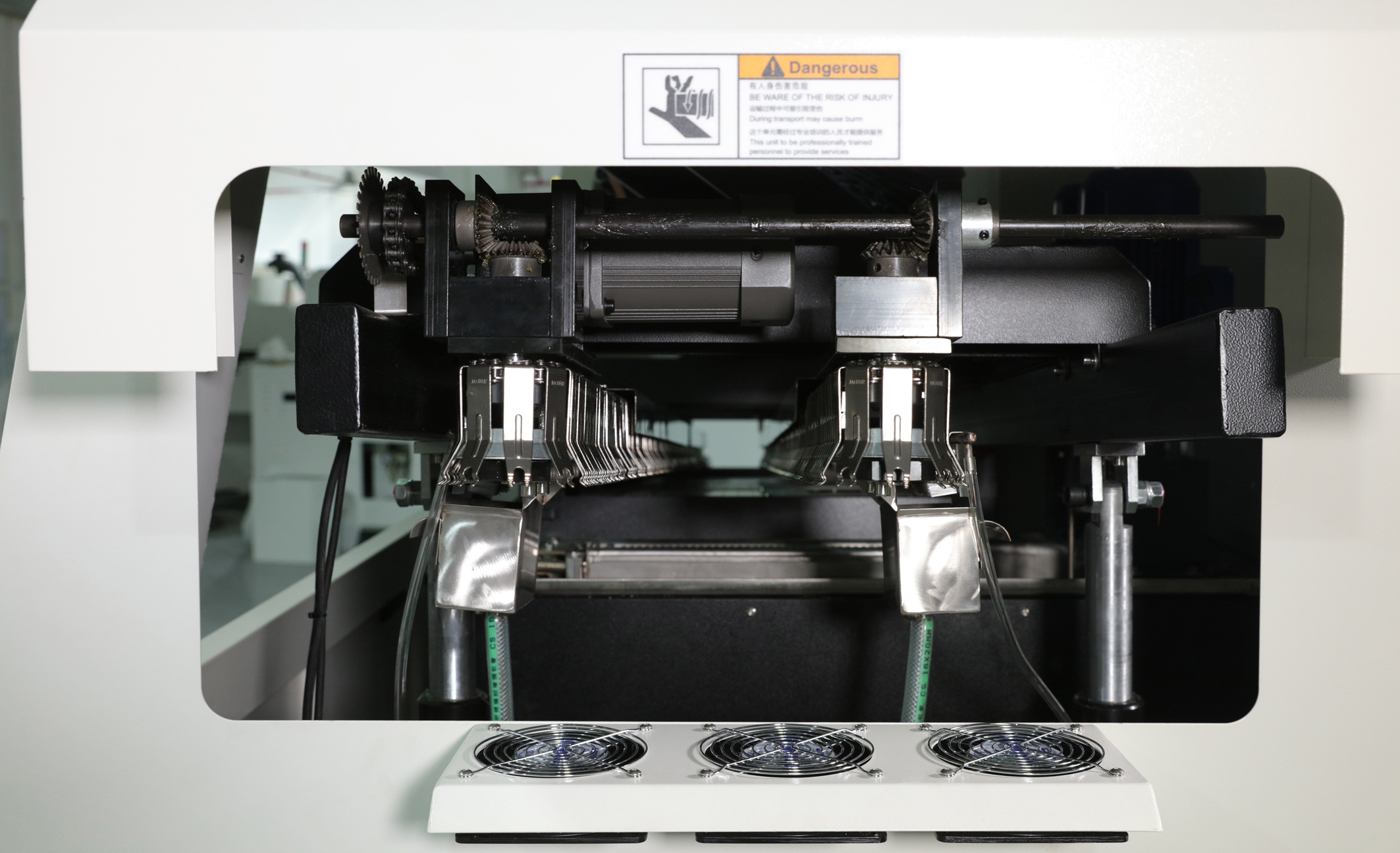

Panasonic conveyor motor, inverter speed control
Automatic finger cleaning system
Fan assisted cooling
Dual Wave 5.2L 19KW 0.5MPa Lead Free Soldering Machine


​
Please contact me if you need any machine!
